If you're a bonafide Do-It-Yourselfer you can't go one more day without, at the very least, a mini air compressor. Once you experience the ease of pneumatic tools, life as you know it will never be the same.  It's too complicated, you say? Ha! Not after you see step by step how easy it is to rig up for interchangable pneumatic tools. I'm partial to the stapler for upholstery purposes.

created at: 2009-05-20

From left to right: The coupler, the male coupler plug and the female coupler plug. You need plenty of these to make attaching and detaching hoses and tools a cinch.

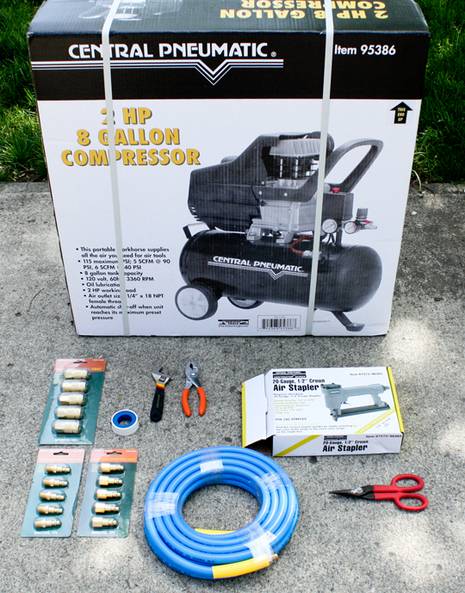

Your new air compressor and the tools you need to get it set up:




air hose

staple gun (This one from Harbor Freight was $17.99 and works great)

teflon tape

compressor oil (not shown)

Allen wrench (not shown)

created at: 2009-05-20

1. Unwrap and see what you need to set up

created at: 2009-05-20

2.  Attach rubber stopper on front of compressor

created at: 2009-05-20

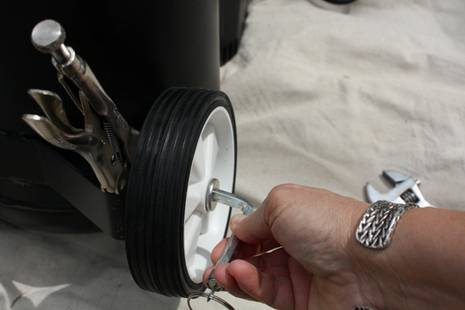

3.  Attach wheels by inserting bolts through the frame, washer and nuts on the back side and using an Allen wrench, tighten the bolts.

created at: 2009-05-20

created at: 2009-05-20

4. Wrap threaded outlet with Teflon tape

created at: 2009-05-20

5.  Attach main coupler to the air compressor

created at: 2009-05-20

6. Attach a female coupler plug to both ends of the hose

created at: 2009-05-20

7.  Snap a main coupler on to the other end of the hose

created at: 2009-05-20

8.  Attach a female coupler plug to the pneumatic tool to snap in to the compressor hose

created at: 2009-05-20

9.  Your pneumatic stapler is ready to go, but first...

created at: 2009-05-20

10.  Remove oil and filter cap and fill with compressor oil per the instructions

created at: 2009-05-20

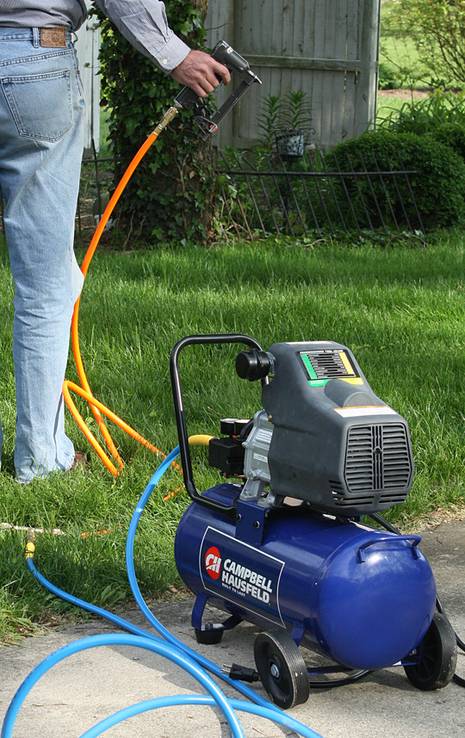

11.  Don't let that man of yours take over the air compressor or you'll never get it back

created at: 2009-05-20

Take note that the air compressor in the first photos is a different brand than this one. The first one was a lemon and had to be returned.

This little portable compressor costs only about $70.00 and it will handle most DIY jobs.

created at: 2009-05-20

Other uses for an air compressor include:

blow out plumbing lines

airbrush painting


inflating tires

blowing up balloons

pneumatic hammer

potato launcher

impact wrench

rotary sander

cleaning shop floor with pressurized air
